States, provinces and municipalities

A query that names states, provinces, counties, cantons or municipalities is drawn on their real boundaries, with no coordinates and no geometry in the query. The Plus panel reads the names or the ISO 3166-2 codes, finds each unit in boundary files that ship with the plugin, and fills it by its value.

Two levels are known:

• States and provinces (first-level subdivisions, ADM1): in 240 countries and territories, every one that has them.
• Counties, districts, cantons and municipalities (second-level subdivisions, ADM2): in 179 countries.

This page extends Places without coordinates, which explains how a column is detected, the 80 % check and the Places options. Only what is particular to subdivisions is covered here.

Column names that are detected

Level	Column names
State / province	state, state_code, province, provincia, subdivision, iso_3166_2, departamento, geoip_subdivision_1_name, geoip_subdivision_1_iso_code
County / district	county, district, municipality, municipio, canton, comuna, geoip_subdivision_2_name

Names are matched as on the Places page: exactly, ignoring case, reading a dot as an underscore. When a query has a county column and a state column, the county is placed and the state helps find it. When it has a state column and a country column, the state is placed and the country narrows its names.

Codes and names

States and provinces

A state or province can be given as:

• its ISO 3166-2 code: EC-A, US-CA, BR-SP. Case does not matter, and an underscore works as the hyphen: ec-a and US_CA are read the same. A code always means its own unit, whatever the row's country.
• its name, in any of the spellings Natural Earth records: the local name, the English, Spanish, French, Portuguese, German, Italian and Dutch names, and the alternative names. São Paulo, Sao Paulo and San Paolo are all São Paulo.
• its postal abbreviation, such as CA or TX, but only when the row's country is known (see The row's country). Two letters on their own could name a unit in too many countries.

About 4,300 of the 4,577 known states and provinces have an ISO 3166-2 code; the rest are found by name only.

Counties and municipalities

A county, canton or municipality is given by its name, as the boundary data spells it, which is usually the local spelling: Cuenca, Los Angeles, Harris. It always needs the row's country, and sometimes its state.

How names are compared

Before two names are compared, both are simplified:

• accents are dropped and case is ignored: Bolívar and BOLIVAR match;
• any run of spaces, punctuation or symbols counts as one space: Santo Domingo de los Tsáchilas and Santo-Domingo de los Tsachilas match;
• one leading word for the kind of unit is dropped: Provincia del Azuay matches Azuay. The words are Provincia de, Provincia del, Provincia, Departamento de, Departamento del, Departamento, Estado de, Estado do, Estado, State of, Province of, Región de, Región, Cantón, Municipio de, Municipio, Distrito de, Distrito and Comuna de;
• one trailing word for the kind of unit is dropped: County, Parish, Borough, Province, District, Municipality or Department. So Harris County matches Harris.

Nothing else is guessed: there is no spelling correction and no partial match. A name that is not in the data is left off the map.

The row's country

Many subdivision names exist in more than one country: Córdoba is a province of Argentina, a department of Colombia and a province of Spain. Plus never picks one of several namesakes. Each row takes its country from, in this order:

1. a country column in the same query: one of the country column names on the Places page (country, country_code…), with at least 80 % of its values recognised as countries. Each row uses its own cell, so one query can hold several countries.
2. the Country option in the query's Places block, when the query has no country column.
3. for states and provinces only, the unit itself: an ISO 3166-2 code, or a name that exists in one country only, gives its own country.

A row whose country cell names no known country is not placed.

Districts need a country, and sometimes a state

A county or municipality is only ever looked up inside its row's country. With no country column and no Country chosen, its rows are counted as needing a country in the status line, and not drawn.

Inside one country the same district name can repeat: Ecuador has more than one canton called Bolívar, and many US states have a county called Washington. The state settles it, taken from:

1. a state column in the same query (any of the state column names above), read per row: an ISO 3166-2 code, a name or, as the country is known, a postal abbreviation;
2. the State option in the query's Places block.

A district that still matches more than one unit is counted as ambiguous, and not drawn.

The Country and State options

The query's block under Places shows these two options when its column is placed as a state or a district:

Option	Choices	Shown
Country	From the rows (the default), or any country with boundaries	for states and districts, when the query has no country column
State	Any (the default), or a state or province of that country	for districts, when the query has no state column and its rows are in one country

The State list follows the country: the one chosen under Country, or the only country the query's country column holds.

Choropleth or bubbles

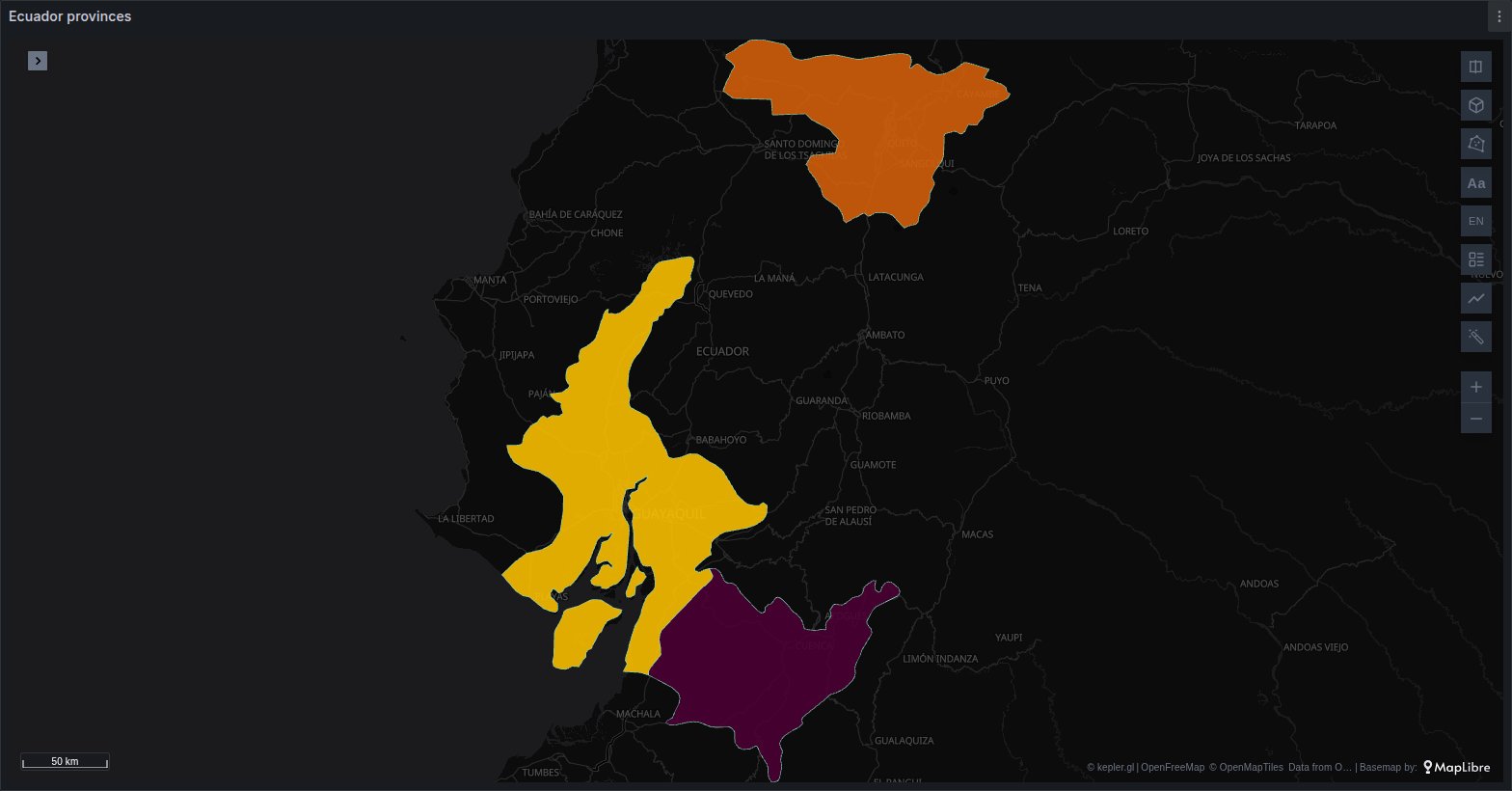

States and districts are drawn as a choropleth by default: each unit is filled by its value, the number of rows or the sum or average of a numeric column (Colour by). Rows that name the same unit are combined into one.

Set Draw as to Bubbles to draw a point inside each unit instead, sized by its value. The point is an interior point of the unit's shape, so it lands inside even a crescent-shaped unit.

The tooltip names the unit and where it is: Azuay, Ecuador for a province, Cuenca, Azuay for a canton. The placed dataset has admin_code, admin_name and country_code columns next to the query's own, which you can use in kepler's tooltip, filters and labels. For a state with an ISO 3166-2 code, admin_code is that code.

States and districts are not drawn as flows, and cannot be the ends of network links.

See it in the layer tour

The Regions map of the layer tour, installed with the app, places Ecuador's 24 provinces by name, from a query with a country column of EC and a province column, fed by Grafana's TestData data source, so it draws with no setup.

Replace the query with your own and keep the column names, or use the Places options to say what each column is.

When a unit does not land

Read the query's status line in the Places options first. A placed query reads like A: province → state / province · 22/24 rows placed · choropleth by sum of sales · country from country, and anything that kept rows off the map is added to it.

The status line says	What to do
… need a country (pick one in Places)	The rows are districts with no country. Add a country column to the query, or choose Country.
… ambiguous	A state name exists in several countries. Add a country column or choose Country.
… ambiguous (add a state column or pick a State)	A district name repeats inside the country. Add a state column, or choose State if every row is in one state.
no districts for country	That country has no second-level boundaries in the plugin. Aggregate the query to states instead.
Shapes for country unavailable	The country's boundary file could not be downloaded from your Grafana server within 15 seconds. Reload the page; a failure is remembered until then.
A: province: 40% recognised, not placed	Fewer than 80 % of the first 50 values are known state names or codes. Check the spelling, or set Kind to State / province to place those that fit.
n/m rows placed and nothing else	The other rows are empty, or name units that are not in the data. Compare them with How names are compared.

Some common causes:

• A column of postal abbreviations is not placed. CA or TX only count once the row's country is known, which the 80 % check cannot assume. Set Kind to State / province: the column is then placed without the check, with the country from a country column or Country.
• A column called state says not placed (no place column). A column named just state is more often an alert state than a place, so a failed check is not reported for it. Choose it under Column to see how much of it was recognised.
• A district name differs from the official one. County and municipality names follow the boundary data, often in the local language and with its own spelling. Look the unit up on geoBoundaries and match its name in the query.
• Boundaries are a little off the base map. The shapes are simplified to keep the files small, and boundaries change over time. The data is as current as the plugin version installed.

Where the boundaries come from

Level	Source	Licence
States and provinces	Natural Earth Admin 1 states and provinces at 1:10 million, version 5.1.2	public domain
Counties and municipalities	geoBoundaries gbOpen ADM2 (Runfola et al.), simplified edition	each country's own licence

geoBoundaries collects each country's boundaries from a different publisher, under that publisher's licence: public domain or CC0 for some countries, CC BY, CC BY-SA, ODbL or a national open-data licence for others. The plugin's THIRD-PARTY-LICENSES.md lists the licence and source of every country's file, and a file derived from ODbL or CC BY-SA data is made available under that same licence. Unlike the DB-IP credit for IP addresses, the panel draws no boundary credit on the map: if you publish maps of counties or municipalities, check the licences of the countries you show.

The boundaries ship with the plugin, one file per country, and are served by your Grafana server like the panel's own files. A file is downloaded only when a query's rows need that country, once per page. Each holds the country's states and, where there are any, its districts, simplified and compressed: from under 1 KB for a small territory to about 60 KB for Ecuador, 340 KB for the United States and 690 KB for Brazil. The index of state names and codes is part of the panel's code, so detecting a state column needs no download. No request goes to Natural Earth, geoBoundaries or any other third party, so subdivisions work on a Grafana server with no internet access.
